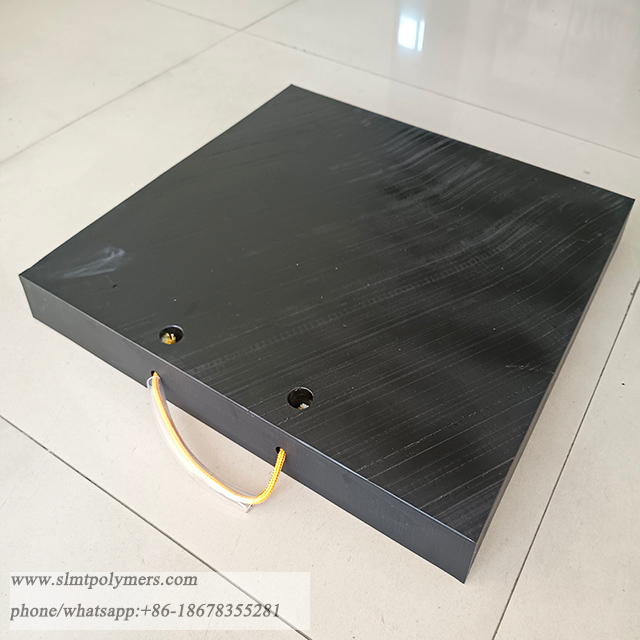

500x500x50mm Outrigger Pads

Langrui engineered plastic cribbing plates outrigger pads help Prevent Jack and Hydraulic Outrigger from Tipping or Slipping!
Ideal for protecting concrete, paved, and other surfaces.
Availability:

Plastic Material: constructed from quality polyethylene, these 2 RV pads with handles in a package are built to last, and resist wearing and tearing; These pads can withstand heavy loads and provide stability for your vehicle, keeping your vehicle safe and secure.


Large Load Carrying Capacity: the 2 stabilizer jack pads with handles have a large load carrying capacity; Despite being lightweight, they can carry a large weight without buckling or giving way, putting you at ease, knowing that your vehicle or machinery is standing on solid ground.


Product Description:

100% Pure Raw Material UHMWPE HDPE Customized Size Crane Outrigger Pads
Square Outrigger Pad Round/Square Outrigger Pad

Common size Loading capacity for crane feed Common size Loading capacity for crane feed
300*300*40mm 3-5 tons 300*40mm 2-6 tons
400*400*40mm 4-6 tons 400*40mm 3-7 tons
400*400*50mm 6-10 tons 500*40mm 4-8 tons
500*500*40mm 10-12 tons 500*50mm 8-12 tons
500*500*50mm 12-15 tons 600*40mm 10-14 tons
500*500*60mm 13-17 tons 600*50mm 12-15 tons
600*600*40mm 15-18 tons 600*60mm 15-20 tons
600*600*50mm 16-20 tons 700*50mm 22-30 tons
600*600*60mm 18-25 tons 700*60mm 25-32 tons
700*700*60mm 25-35 tons 700*70mm 30-35 tons
800*800*70mm 30-45 tons 800*70mm 40-50 tons
1000*1000*80mm 50-70 tons 1000*80mm 45-60 tons
1200*1200*100mm 60-100 tons 1200*100mm 50-90 tons
1500*1500*100mm 120-180 tons 1500*100mm 80-150 tons
Customized size and shape on demand


Ultra High Molecular Weight Polyethylene Sheet Crane Outrigger Plate Polyethylene PadPolyethylene outrigger pads with a load capacity of 4 tons to 300 tons Non-slip pads
