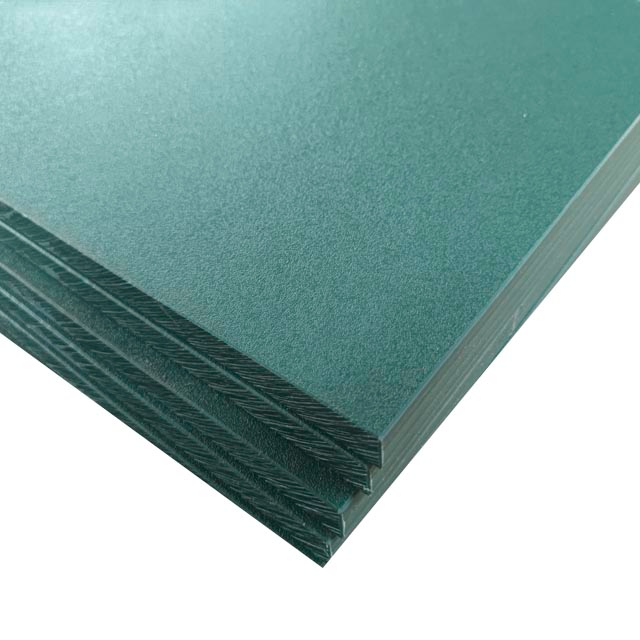

Hdpe Sandwich Color Wear Resistant Two Color Sandwich Hdpe Sheet
The properties of HDPE :
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Because the colours are layers, we can be cut into to reveal the underlayer for the purpose of having patterns, numbers, letters or words. (We offer a CNC service whereby you can send us a design, or we can design for you any pattern, shape, letter, number or wood and have it cut out on our in-house CNC machine.)
Thickness range: 6mm~25mm
Width max.: 2000mm
Length: Any length
Standard sizes: 1220X2440; 1000X2000; 1200X2400
We can also provide any other sizes according to your special needs.
1220x2440mm; thickness 10mm,12mm,15mm,18mm,19mm,20mm
Colour: Red/Yellow/Red, Blue/Black/Blue, Blue/Yellow/Blue, Green/Purple/Green, Purple/Black/Purple, Red/Yellow/Red, White/Black/White
If you don't need the layered colours we also supply a solid coloured board/sheets too.
Advantage of Hdpe Sandwich Color Wear Resistant Two Color Sandwich Hdpe Sheet:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--Superior impact resistant, Noise- absorption, Vibration-absorption
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
--Easy Reprocessed plastic ground protection mat
-- Creates an instant roadway over virtually any type of terrain – Mud, sand, marshy,
uneven or soft terrain
--Extremely durable to withstand vehicle weights up to 80 tons
--Tested in extremes of hot and cold climates
