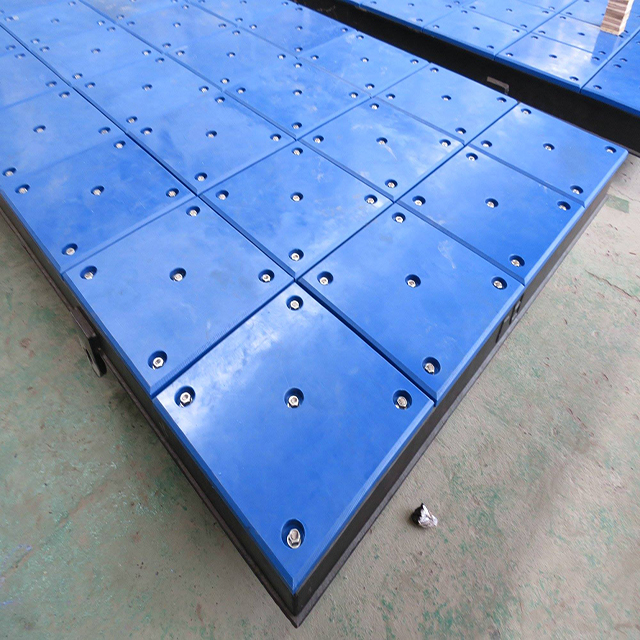

Marine Front Face Pad UHMW PE Panel Flat Plate

Uhmwpe marine dock bumper pad could avoid the impact damage between ships and dock . Because of the pe plastic marine fender face pad fender high impact resistance performance, HDPE / UHMWPE marine dock bumper pads instead of the traditional steel ones is widely used in ports and docks at home and abroad.
Availability:

Marine Front Face Pad UHMW PE Panel Flat Plate


Test ItemTest MethodResult

Static Coefficient of Friction(ps)

ASTM D1894-14

0.148

Kinetic Coefficient of Friction(px)

ASTM D1894-14

0.105

Izod Notched Impact Strength

ASTM D256-10C1 Method A

840J/m P(partial break)

Shore Hardness

ASTM D2240-15E1

D/64/1

Tensile Modulus

ASTM D638-14

551 MPa

Tensile Strength

ASTM D638-14

29.4MPa

Elongation at Break

ASTM D638-14

3.4



Application:

♦ Fender panel facing pads

♦ Fender pile rubbing strips

♦ UE-V fender shields

♦ Facing strips for jetties and wharves

♦ Lock entrance and lock wall protection

♦ Mitres on lock gates

♦ Bridge buttress protection

♦ Pontoon pile guide bearings

♦ Fast-launch lifeboat slipways

♦ Beltings for smaller workboats
