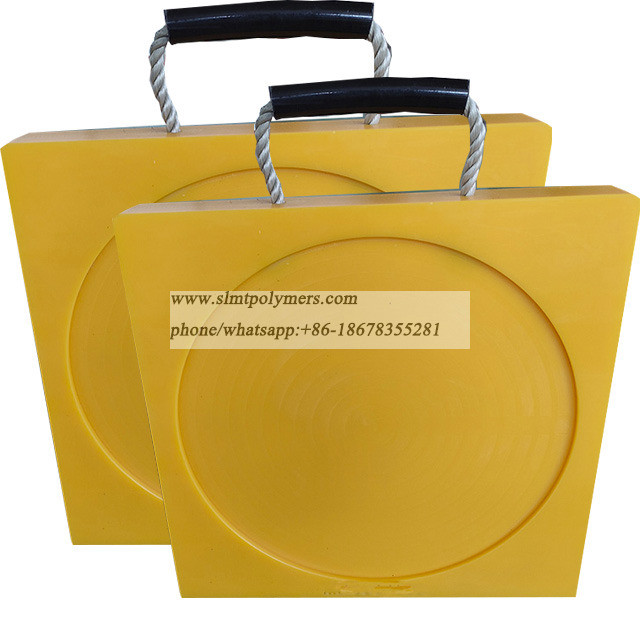

Recyclable Colored Uhmwpe Stabilizer Crane Leg Outrigger Pads
Our products are made from UHMWPE and are significantly more durable and lighter than traditional wood or steel pads. Wood outrigger pads tend to splinter, hold water, and rot overtime. Steel and aluminum pads tend to corrode, discolor, warp, and are heavy. UHMWPE outrigger pad are supplied standard in black, but can be made in any color.
Specification | |||
Square Outrigger Pad | Round Outrigger Pad | ||
Common size | Loading capacity for crane feed | Common size | Loading capacity for crane feed |
300*300*40mm | 3-5 tons | 300*40mm | 2-6 tons |
400*400*40mm | 4-6 tons | 400*40mm | 3-7 tons |
400*400*50mm | 6-10 tons | 500*40mm | 4-8 tons |
500*500*40mm | 10-12 tons | 500*50mm | 8-12 tons |
500*500*50mm | 12-15 tons | 600*40mm | 10-14 tons |
500*500*60mm | 13-17 tons | 600*50mm | 12-15 tons |
600*600*40mm | 15-18 tons | 600*60mm | 15-20 tons |
600*600*50mm | 16-20 tons | 700*50mm | 22-30 tons |
600*600*60mm | 18-25 tons | 700*60mm | 25-32 tons |
700*700*60mm | 25-35 tons | 700*70mm | 30-35 tons |
800*800*70mm | 30-45 tons | 800*70mm | 40-50 tons |
1000*1000*80mm | 50-70 tons | 1000*80mm | 45-60 tons |
1200*1200*100mm | 60-100 tons | 1200*100mm | 50-90 tons |
1500*1500*100mm | 120-180 tons | 1500*100mm | 80-150 tons |
Customized size and shape on demand | |||
Advantage of Recyclable Colored Uhmwpe Stabilizer Crane Leg Outrigger Pads :
--Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
--Do not absorb moisture and will not swell up over time due to exposure outdoors.
--Good impact intensity,Do not lose their impact strength over time.
--Good breaking elongation,so they will bend but not break under extreme loads.
--Non-stick surface, easy to clean.
--Corrosion and chemical resistant.
--Noise- absorption, Vibration-absorption
--Super compression strength
--15 Percent the weight of steel pads and easier to handle
--Compressive loads up to one million pounds
--Up to 15,000 pounds per square foot
