The properties of HDPE Sheets:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Thickness range: 6mm~25mm
Width max.: 2000mm
Length: Any length
Standard sizes: 1220X2440; 1000X2000; 1200X2400
We can also provide any other sizes according to your special needs.
1220x2440mm; thickness 10mm,12mm,15mm,18mm,19mm,20mm

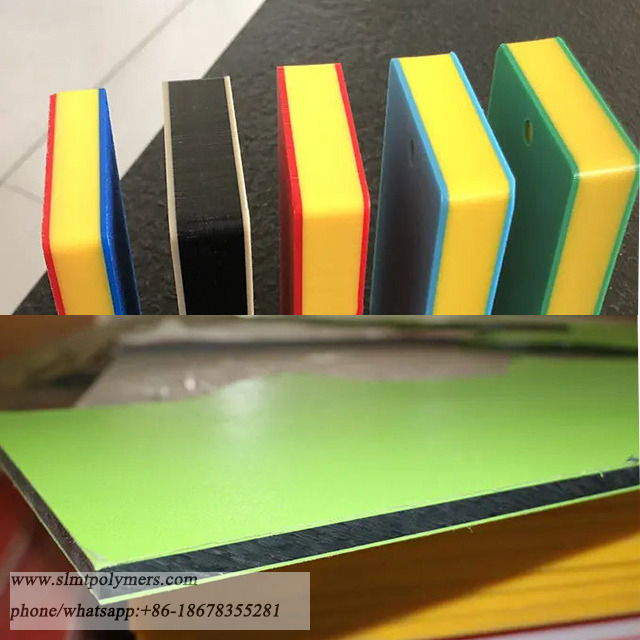

Colour: Red/Yellow/Red, Blue/Black/Blue, Blue/Yellow/Blue, Green/Purple/Green, Purple/Black/Purple, Red/Yellow/Red, White/Black/White
If you don't need the layered colours we also supply a solid coloured board/sheets too.
