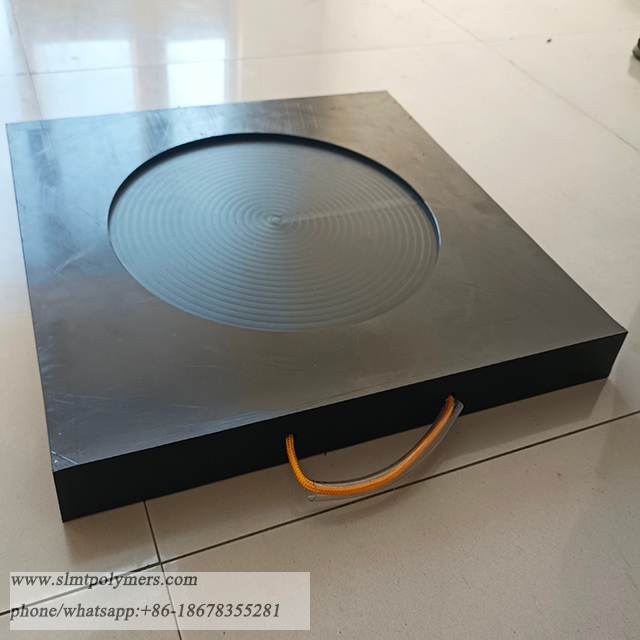

Thickness 50mm Crane Outrigger Pads

Langrui engineered plastic cribbing plates outrigger pads help Prevent Jack and Hydraulic Outrigger from Tipping or Slipping!
Ideal for protecting concrete, paved, and other surfaces.

Plastic Material: constructed from quality polyethylene, these 2 RV pads with handles in a package are built to last, and resist wearing and tearing; These pads can withstand heavy loads and provide stability for your vehicle, keeping your vehicle safe and secure.

Large Load Carrying Capacity: the 2 stabilizer jack pads with handles have a large load carrying capacity; Despite being lightweight, they can carry a large weight without buckling or giving way, putting you at ease, knowing that your vehicle or machinery is standing on solid ground.

Product Description:

100% Pure Raw Material UHMWPE HDPE Customized Size Crane Outrigger Pads
Square Outrigger Pad Round/Square Outrigger Pad

Common size Loading capacity for crane feed Common size Loading capacity for crane feed
300*300*40mm 3-5 tons 300*40mm 2-6 tons
400*400*40mm 4-6 tons 400*40mm 3-7 tons
400*400*50mm 6-10 tons 500*40mm 4-8 tons
500*500*40mm 10-12 tons 500*50mm 8-12 tons
500*500*50mm 12-15 tons 600*40mm 10-14 tons
500*500*60mm 13-17 tons 600*50mm 12-15 tons
600*600*40mm 15-18 tons 600*60mm 15-20 tons
600*600*50mm 16-20 tons 700*50mm 22-30 tons
600*600*60mm 18-25 tons 700*60mm 25-32 tons
700*700*60mm 25-35 tons 700*70mm 30-35 tons
800*800*70mm 30-45 tons 800*70mm 40-50 tons
1000*1000*80mm 50-70 tons 1000*80mm 45-60 tons
1200*1200*100mm 60-100 tons 1200*100mm 50-90 tons
1500*1500*100mm 120-180 tons 1500*100mm 80-150 tons
Customized size and shape on demand

Ultra High Molecular Weight Polyethylene Sheet Crane Outrigger Plate Polyethylene PadPolyethylene outrigger pads with a load capacity of 4 tons to 300 tons Non-slip pads


Hot Products

It have excellent wear resistance, low temperature impact resistance, selflubricating, nontoxic, water resistance, chemical resistance, and heat resistant, they are superior to general PE. It can be widely used to impact resistance, wearresistant, corrosionresistant, nonsticking, reduce noise, and high hygiene requirements of industrial mining field. It can greatly reduce operatingcosts of the equipment and maintenance, at the same time improve overall economic benefits.
HDPE Sheet is a semi-crystalline, thermoplastic engineering material with high toughness and good low-temperature properties. Customization is available for different specifications and performances to serve different applications.
We can make different UHMWPE Sheet according to different application .Like anti-UV resistant anti-static and with other characters , Best quality with good surface and color make our UHMWPE sheet more and more popular all over the world.
Uhmwpe marine dock bumper pad could avoid the impact damage between ships and dock . Because of the pe plastic marine fender face pad fender high impact resistance performance, HDPE / UHMWPE marine dock bumper pads instead of the traditional steel ones is widely used in ports and docks at home and abroad.
Langrui engineered plastic cribbing plates and outrigger pads are lightweight, strong, and solid designed tu support your crane, and can be easily handled and positioned byp one persn or two. It can not be warped like wood or corroded like steel. It won't break in the long guaranteed time and obviously could not attract thieves.
