UHMWPE Paddle for Conveyor Chain Scraper Blades

Ultra high molecular weight polyethylene scraper has no fixed size, so you need to make sure the shape, size, thickness and other information with the manufacturer before you place an order. If there are samples or drawings, it will be more convenient.
Availability:

Uhmwpe parts are usually white, but we can also do other colors such as red, black, blue, yellow, green, etc.
Suitable for conveyors of any shape or manufacture, can use ultra-high power or high temperature machinery for drag flight, can be used for star wheels, seals, propagation fittings or other HDPE CNC machined parts.


Suitable for conveyors of any shape or manufacture, can use ultra-high power or high temperature machinery for drag flight, can be used for star wheels, seals, propagation fittings or other HDPE CNC machined parts.


Items

Unit

Value

Specific Gravity

g/cm³

0.96

Max Continuous Operating Temp

°C

80

Max Short Term Operating Temp (3-4hrs)

°C

130

Tensile Strength

Mpa

23

Co-efficient of thermal expansion

m/(m.k) x 10¯6

150-230

Dielectric Strength

KV/mm

45

Surface Resistivity

Ohms

>1014

Relative Abrasion Loss by Sand Slurry


70

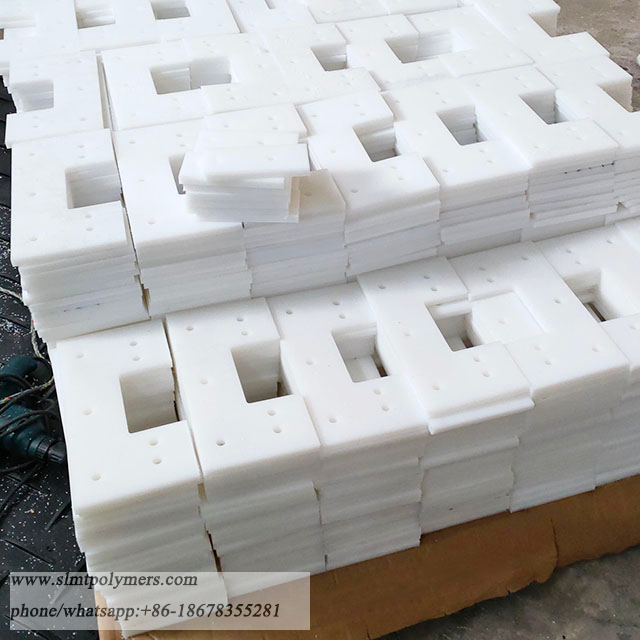

White Color Plastic UHMWPE Drag Conveyor Flight Paddle (3)White Color Plastic UHMWPE Drag Conveyor Flight Paddle (1)
