Uv Resistant Hdpe Liner Sheet 25mm Truck

Good lubrication and exceptional low abrasion coefficient character of UHMWPE sheet make it to be choosed to be the lining of many chute , coal bunker , truck liner , mixing silo lining and other project whose conveyor cohere easily when it been unloaded and delivered .
Availability:

Uv Resistant Hdpe Liner Sheet 25mm Truck


We can make the vigin UHMWPE material for liners with most cmopetitive price and best quality.

Recognized worldwide as a premium lining material for bulk material handling, UHMWPE Lining is noted for its performance in promoting bulk solids flow of cohesive or non-free flowing materials due to its low surface friction. UHMWPE liners are the perfect solution when you need to reduce or eliminate arching, rat holing and erratic material flow challenges in bins, bunkers, hoppers and chutes, railcars, etc. Lightweight (1/8 the weight of steel), it is easily machined and installed.


UHMWPE Lining can be fabricated and welded to provide a solution for nearly any application, whether it’s a seamless, drop-in liner; a framed-in liner or even a replacement liner. Tivar88 equaled UHMWPE Liner (Abson-T88 UHMWPE Sheet) engineering continually works on new solutions for current and future application challenges.


Features of Uv Resistant Hdpe Liner Sheet 25mm Truck:

Promotes reliable, steady bulk flow

Reduces or eliminates arching, rat holing & erratic flow

Abrasion, chemical and corrosion resistant

Low coefficient of friction

No moisture absorption


Applications of Uv Resistant Hdpe Liner Sheet 25mm Truck:

Belt scrapers

Bunk liners & cyclones

Chain conveyor flights

Chute liners

Dust collection hopper liners

Dragline buckets

Front end loader bucket liners

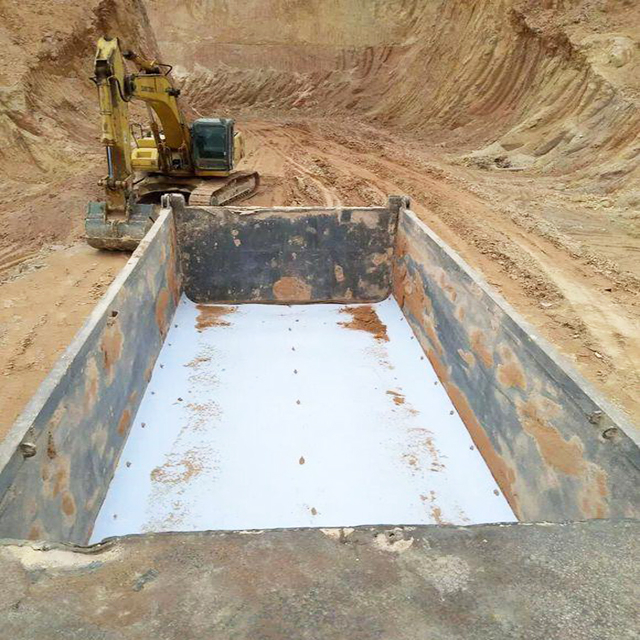

Offroad truck beds

Railcar liners


Property
Item No.
Unit
Value
1
Density
g/cm3
0.94-0.96
2
average molecular weight
g/mol
9.2X106
3
Tensile strength (23℃ in air)
MPa
22
4
Breaking strength
MPa
42
5
Tensile strain at break
600
6
Charpy impact strength (notched)
mJ/mm2
No break
7
Ball indentation hardness
N/mm2
42
8
Shore D hardness
--
D65
9
Abrading(sand slurry experiment)
--
100
10
Coefficient of Friction
--
0.09~0.1
